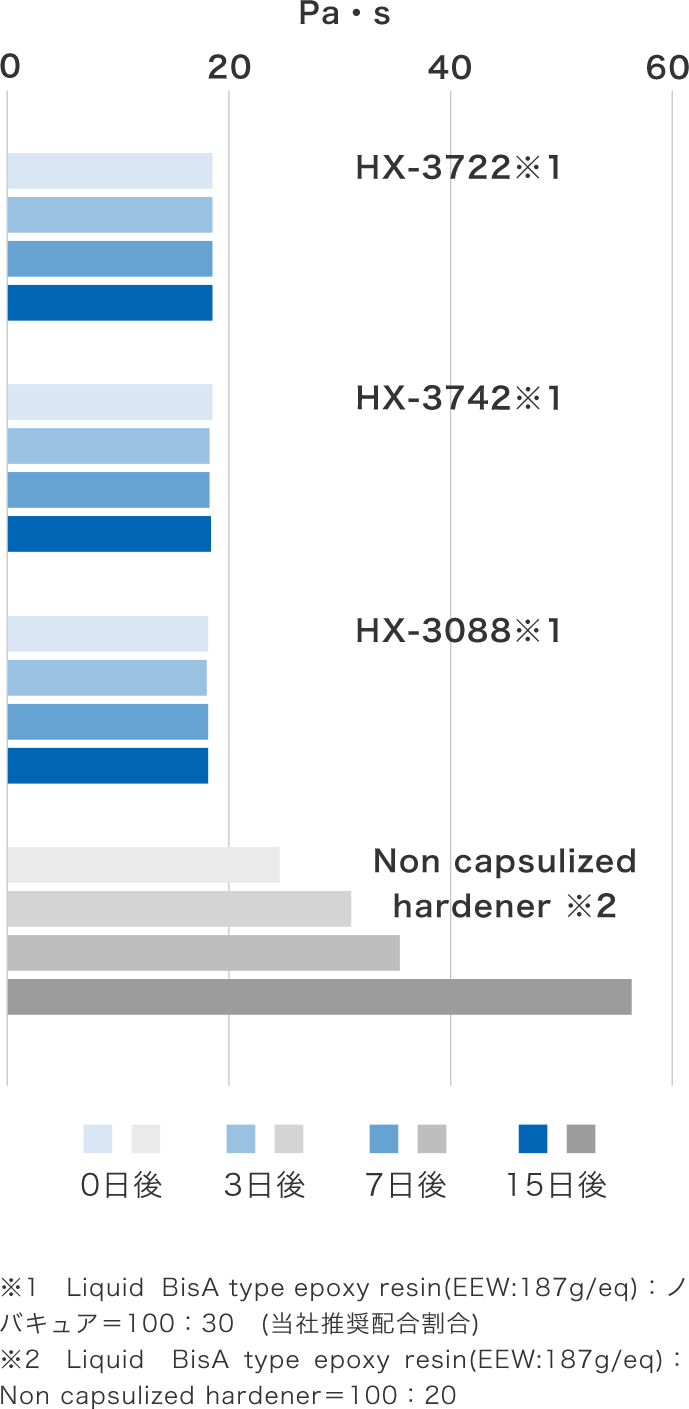

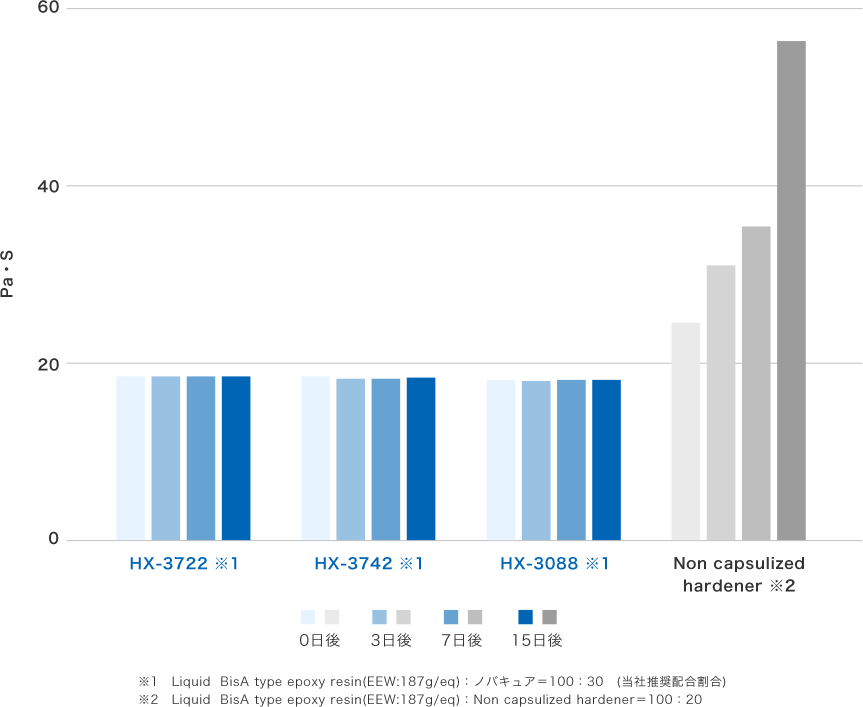

| initial | 3 days later | 7 days later | 15 days later | ||
|---|---|---|---|---|---|
| HX-3722 ※1 | 30phr | 18.4 | 18.5 | 18.5 | 18.5 |
| HX-3742 ※1 | 30phr | 18.4 | 18.2 | 18.2 | 18.3 |
| HX-3088 ※1 | 30phr | 18.1 | 18.0 | 18.1 | 18.1 |
| Non capsulized hardener ※2 | 20phr | 24.5 | 31.0 | 35.4 | 56.3 |
| Grade |
Mean particle size ［um］ |
Capsule thickness |
Feature |
Viscosity ［Pa・s］ |
Gel time (Resin composition) ［min］ |
||
|---|---|---|---|---|---|---|---|
| 90℃ | 130℃ | 170℃ | |||||
| HX-3722 | 2 | Thin | Low temp,(80℃〜) and rapid cure | 100～500 | 11 | 1 | <1 |
| HX-3742 | 2 | Thick | Long pot life(with acid anhydride) | 200～600 | >30 | >30 | <1 |
| HX-3088 | 2 | Ex-thick | Long pot life(with acid anhydride) | 200～700 | >30 | >30 | >30 |
| HX-3921HP | 5 | Thin |
Low temp,rapid cure Low chlorine type |
50～130 | 11 | 1 | <1 |
| HX-3941HP | 5 | Thick |
Long pot life / solvent stable Low chlorine type |
50～250 | >30 | <1 | <1 |
| HXA3922HP | 2 | Thin |
Low temp,rapid cure Low chlorine type |
70～200 | 14 | 1 | <1 |
| HXA3932HP | 2 | Thick |
Long pot life / solvent stable Low chlorine type |
50～200 | >30 | 1 | <1 |
上記は代表的なグレードであり、粘度や硬化開始温度等でご要望が御座いましたら是非お問い合わせください。
※Liquid BisA type epoxy resin(EEW:180g/eq)：ノバキュア＝100：30 (当社推奨配合割合)
